FlinInfini Turbo 6kW-48V Solar Hybrid Inverter
₹116,000.00

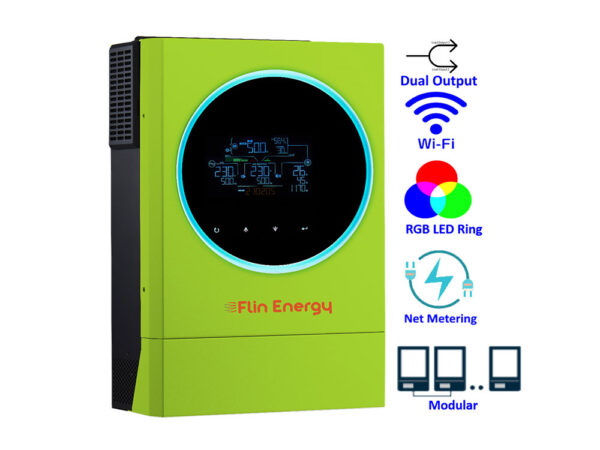

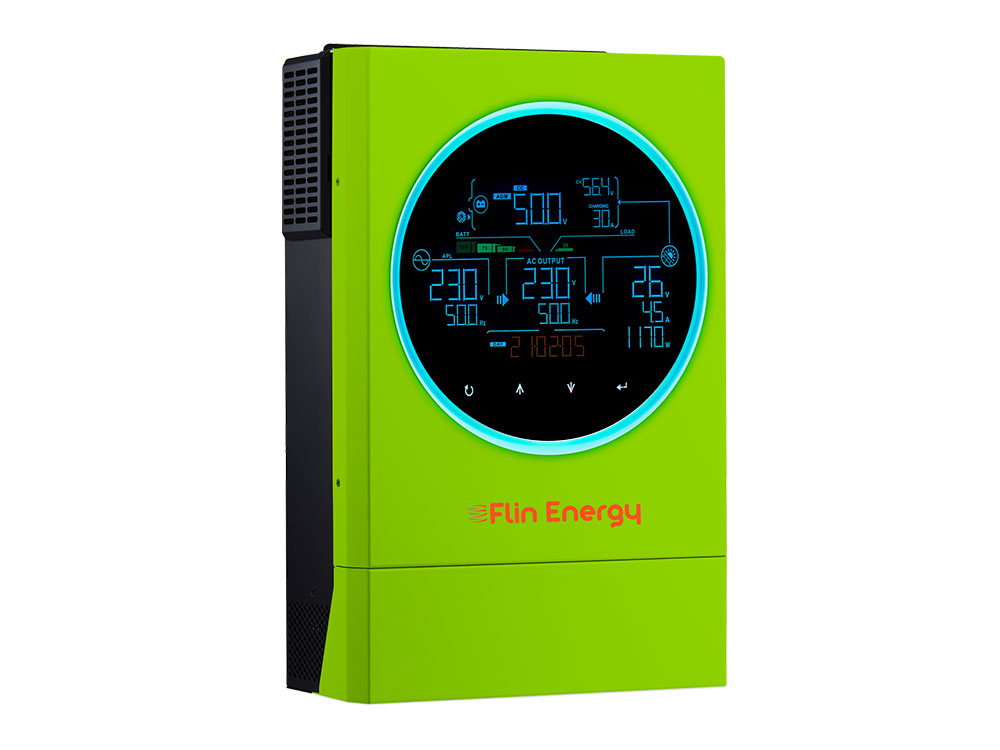

FlinInfini Turbo MPPT 6kW-48V Solar Hybrid Inverter is a new generation, future ready inverter with a creative design and a big 4.3-inch LCD display with RGB LED ring and touch buttons. It comes with dual output feature.Now connect emergency loads on one output and non-emergency loads on second output and control how you want to use battery backup for non-emergency loads. The second output can be intelligently controlled by inverter brain using multiple parameters.

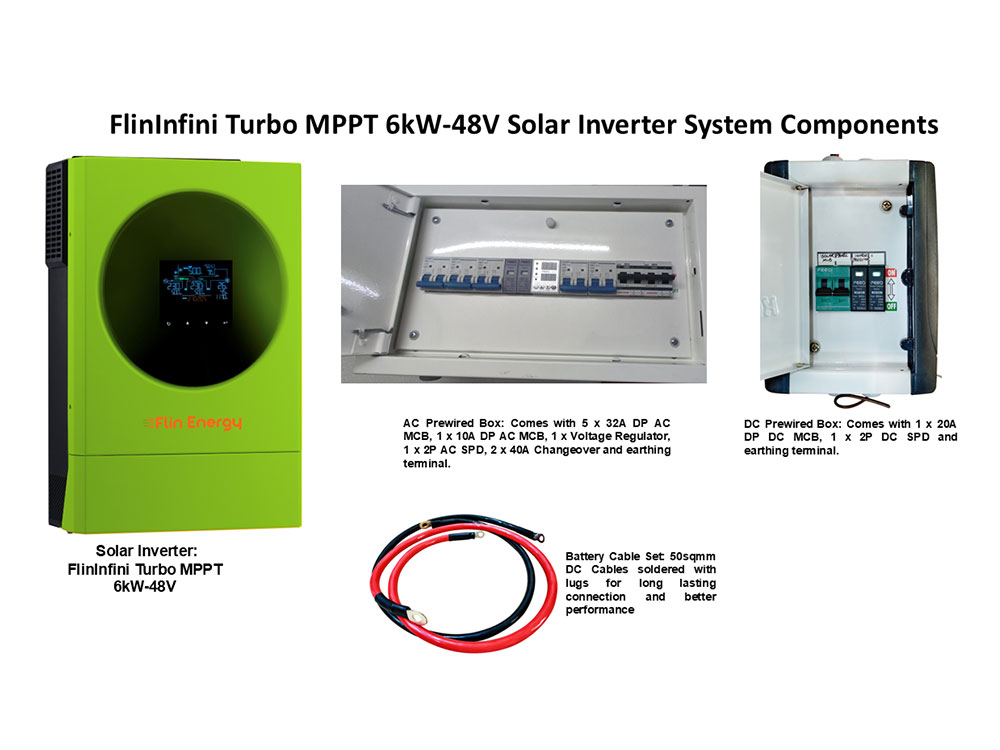

FlinInfini Turbo MPPT 6kW Solar Hybrid Inverter Package comes with
- 1 x FlinInfini Turbo MPPT 6kW-48V
- 1 x AC Prewired Box
- 1 x DC Prewired Box
- 1 x Battery Cable Set for 4 batteries
Size: 6kW-48V
FlinInfini Turbo can be used as a Hybrid, On-Grid and Off-Grid Solar Inverter. It comes with Grid-Export feature. This robust solar inverter offers 40+ customizable settings, load sharing option between solar & grid or solar & battery and supports variety of batteries including lead acid, lithium ion & LiFePO4 batteries. This model also comes with wide MPPT range with up to 6.5kW PV output and comes with inbuilt solar generation kwh meter.
FlinInfini Turbo comes with Dual Output feature,inbuilt Wi-Fi monitoring and can be expanded all the way up to 50kw solar system by connecting together up to 9 inverters in single phase or three phase setup.Now connect emergency loads on one output and non-emergency loads on second output and control how you want to use battery backup for non-emergency loads.
The second output can be controlled in three different ways: It can be scheduled to switch on for particular time range, you can set battery discharge timer for non-emergency loads and you can set voltage-based limit to switch off non-emergency load once battery is discharged to set voltage. If you are using any of the lithium batteries that allows communication with inverter, you can set limit based on percentage of the battery backup instead of voltage-based limit.
Special Features
- Pure Sine Wave solar inverter with up-to 93% peak efficiency
- Dual Output
- 4.3” large coloured LCD Display with touch buttons & customizable LED Ring with RGB light
- Inbuilt kWH Meter and Grid Feed-in/Export option
- Selectable timer for grid charging
- Customizable supply priority and customer adjustable charging current and voltage
- Built in Wi-Fi monitoring via mobile app
- Communication port for BMS – RS485
- Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
- Can be used without batteries
- Connect up-to 9 inverters in parallel in single phase & three phase
FlinInfini Turbo can be used as a Hybrid, On-Grid and Off-Grid Solar Inverter. It comes with Grid-Export feature. FlinInfini Turbo comes with Dual Output feature,inbuilt Wi-Fi monitoring and can be expanded all the way up to 54kw solar system by connecting together up to 9 inverters in single phase or three phase setup. Now connect emergency loads on one output and non-emergency loads on second output and control how you want to use battery backup for non-emergency loads.
The second output can be controlled in three different ways: It can be scheduled to switch on for particular time range, you can set battery discharge timer for non-emergency loads and you can set voltage-based limit to switch off non-emergency load once battery is discharged to set voltage. If you are using any of the lithium batteries that allows communication with inverter, you can set limit based on percentage of the battery backup instead of voltage-based limit.
Distinct Features:

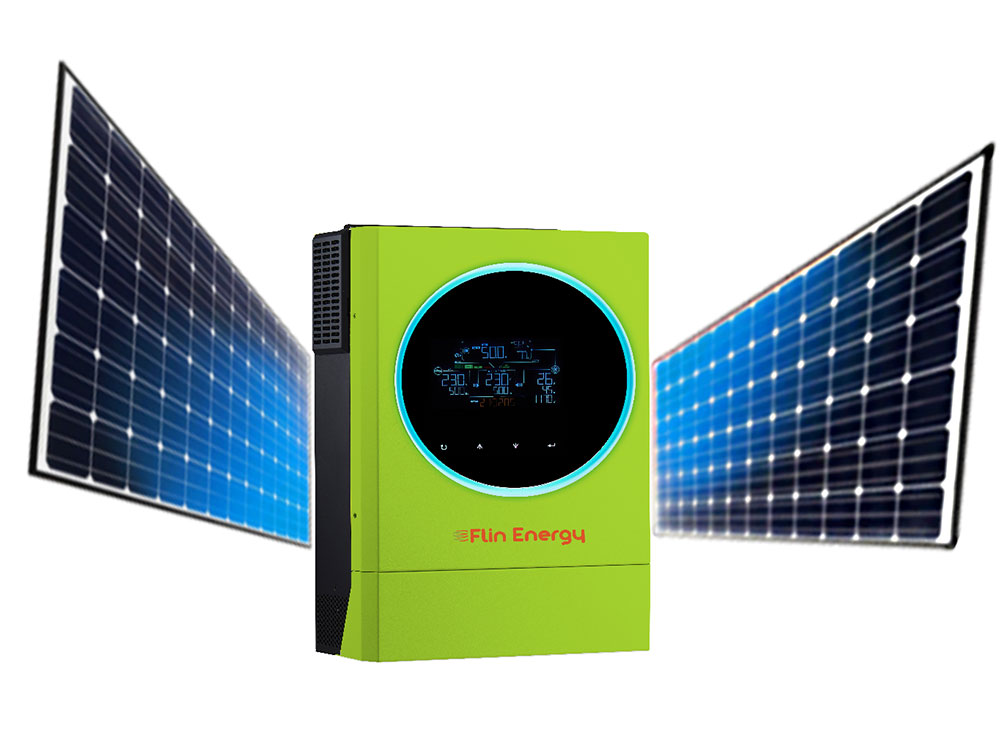

Direct Power from Solar
FlinInfini turbo allows you to choose on how to power your loads: Either share loads between solar & utility or share loads between solar & battery. Intelligent system allows you to power load directly from solar power during the day time keeping grid and/or battery power only for back-up. Wide MPPT range (120 ~ 430 VDC) of the built-in solar charge controller offers more flexibility to the users and reduces installation costs.
Dual Output for Load
By connecting emergency loads to one output andnon-emergency loads to another, you can control the useof battery backup for non-emergency loads. There arethree control options available: schedule a specific time range for switching on, set a battery discharge timer, orestablish a voltage limit to switch off the non-emergencyload when the battery is discharged. For lithium batteriesthat allow communication with the inverter, you can set a limit based on the battery’s percentage instead of voltage.
Battery Compatibility
FlinInfini Turbo is future ready solar inverter. It can be used with or without batteries. It is compatible with variety of battery banks including Lead Acid, Lithium-Ion and LiFePO4 Batteries. The inbuilt RS485 communication port for connecting with battery bank BMS allows the battery to provide information like state of charge as well as real-time control the charging or discharging of battery pack based on battery condition.
Net Metering Feature
Feed-in to Grid + Load + Battery Charging
FlinInfini Turbo converts the solar power generated to power the load and charge the batteries. All excess power generated will feed-in to the Grid if net metering is activated.
Battery Backup when AC Fail
If the Grid is not available, FlinInfini Turbo will continue to power the load directly from the solar power and the extra solar energy generated is used to charge the batteries.

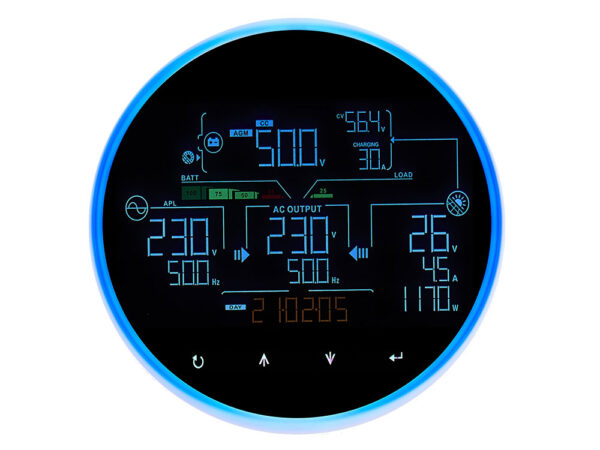

Customizable Display with RGB LED Ring
Why Buy FlinKits?
- Support Like No Others: We are there for you during the entire process -before, during and after your installation. We are always ready to answer all your questions to make sure you are a satisfied customer whether or not you purchase from us. If you have a technical question, that requires expertise in the field, or simple question – our engineers are available just for you. We thrive in helping people go solar!
- Flin Solar Inverters: FlinKits include one of the few off-grid or hybrid solar inverters available in the market that power the loads directly using solar power. Our advanced inverters allow you to re-charge batteries using only solar power or a combination of solar and utility.
- Easy to Install: We mean it, when we say it! Over the years, we have worked hard to make sure that end customer or an installer doesn’t require lot of time installing which can usually be quite a complicated task. Our high-quality plug and play accessories like pre-wired distribution boxes and battery cable sets ensure that you are ready to go solar without hassles of working out wiring etc.
- High Quality Accessories: We include all the necessary accessories in the kit – so that you don’t have to worry about sourcing it from outside. The distribution boxes are prewired and labelled making them easy to install and giving you all the necessary protections from surge and over/under voltage. The soldered battery cables last longer and prevent loose connections from battery side protecting the battery and the inverter both. Also, they prevent losses from battery side and make the system overall more robust.
- Warranty: We provide 2-year product warranty for all our solar inverters and up-to 5 years of free service
Model
| Rated Power | 6000 VA / 6000 W |
| Parallel Capability | Yes, up to 9 units |
Input
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
Output
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Dual Output | Yes |
| Surge Capacity | 12000 VA for 5 secs |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | < 50 W |
Battery
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
Solar Charger
| Maximum PV Array Power | 6500W |
| Solar Charger Type | MPPT |
| MPPT Range | 120 ~ 430VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27 A |
Physical
| Dimension, D x W x H (mm) | 140 x 295 x 468 |
| Net Weight (kgs) | 12 |
| Communication Interface | RS232/Dry-Contact/WiFi |
Operating Environment
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C – 50°C |
| Storage Temperature | -15°C – 60°C |
*Product specifications are subject to change without further notice.
FlinInfini Turbo MPPT solar inverter comes with 2 year warranty and up-to 5 years of service support. Warranty form needs to be completed with all installation photos after instalation on our website to get warranty activated.
