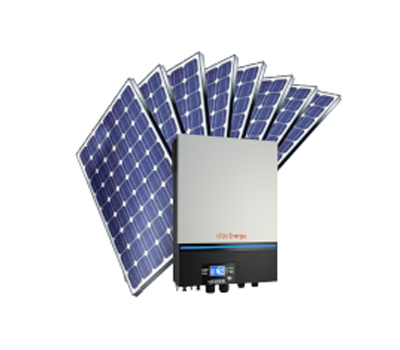

FlinSlim MPPT Elite 4kW-24V Solar Inverter
₹80,200.00

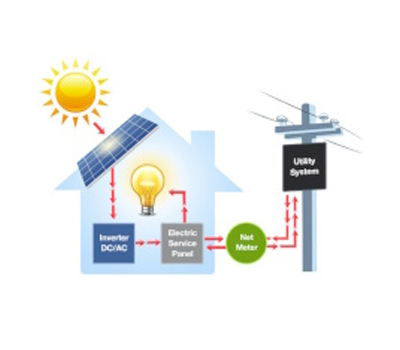

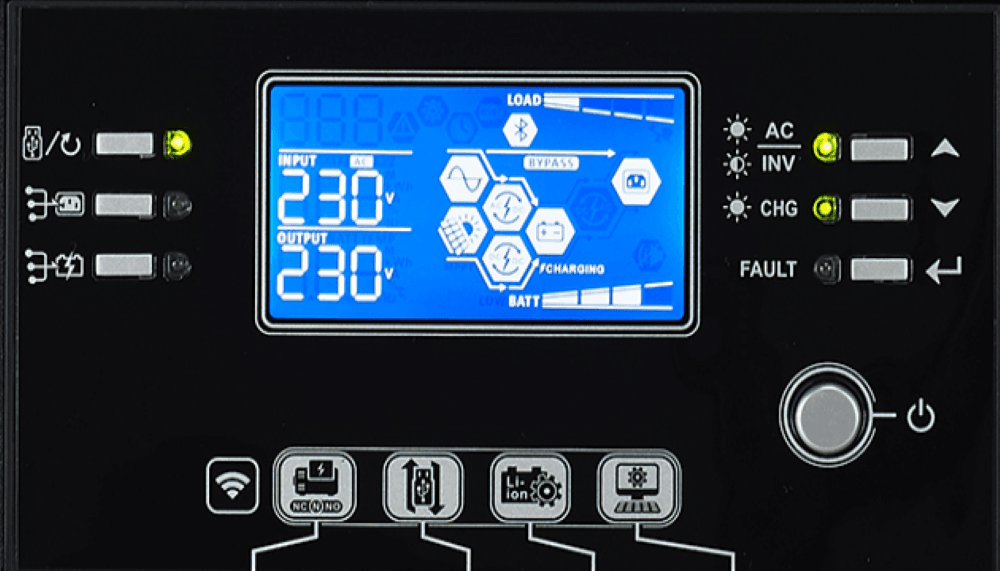

FlinSlim MPPT Elite 4kVA-24V Solar Inverter is a cutting-edge solution designed to optimize your solar energy system. With an impressive 5kW PV input capacity, this inverter seamlessly integrates solar, battery, and grid power to meet your energy needs efficiently. It features built-in Wi-Fi monitoring, customizable settings, and a removable LCD screen for unparalleled control and convenience.esigned to offer more customized options like grid export feature, inbuilt WiFi monitoring to customers along with robustness.Moreover, it supports grid export for net metering, allowing you to feed excess power back to the grid.
Size: 4kVA-24V
FlinSlim MPPT Elite 4kVA-24V Solar Inverter is designed to offer more customized options to customers along with robustness. It comes with wide MPPT range tooffer 5kW PV capacity. This inverter comes with load sharing option between solar and grid and you can also use this without batteries. It has kwh meter inbuilt. It is 24V so reduces investement in batteries and is compatible with Lithium Ion, LiFePO4 and Lead Acid Batteries.
Features
- Pure Sine Wave solar inverter with up-to 93% peak efficiency
- Setting Timer available for load priority and battery charging
- Built in Wi-Fi monitoring via mobile app
- Communication port for BMS – RS485
- Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
- Can be used without batteries
- Grid Export Option Available
Model
| RATED POWER | 4000 VA / 4000 W |
| GRID EXPORT | Yes, Available |
Input
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) at 50% Load |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
Output
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Capacity | 8000 VA for 5 secs |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For UPS Mode); 20 ms (For Appliance Mode) |
| Waveform | Pure Sine Wave |
Battery
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 100A |
Solar Charger
| Maximum PV Array Power | 5000W |
| Solar Charger Type | MPPT |
| MPPT Range | 120 ~ 450VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
Physical & Communication
| Dimension, D x W x H (mm) | 115x 300 x 400mm (D x W x H) |
| Net Weight (kgs) | 9 |
| Communication | USB/RS485/RS232/Dry-Contact/WiFi |
Operating Environment
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C – 50°C |
| Storage Temperature | -15°C – 60°C |
Standards & Certifications
| Compliance | CE, BIS |
*Product specifications are subject to change without further notice.
FlinSlim MPPT Elite solar inverter comes with 2 year warranty extendable to 5 years at additional cost and up-to 5 years of service support.
