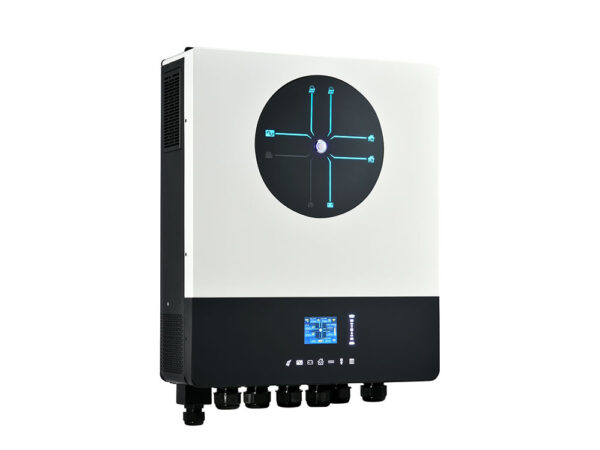

FlinSlim MPPT Elite 8kW Solar Inverter New
₹185,900.00
FlinSlim MPPT Elite 8kW-48V Solar Hybrid Inverter a premium choice for efficient and versatile energy management. Designed for both residential and commercial use, this inverter boasts dual MPPT technology with a robust 10kW PV input capacity, enabling seamless solar energy integration. It is compatible with lead-acid, lithium-ion, and LiFePO4 batteries, or can operate without batteries altogether. Featuring advanced hybrid capabilities, it supports dual AC inputs (utility and generator) with automatic switching, ensuring uninterrupted power supply.
The inverter is equipped with a built-in current transformer for zero-export functionality and supports grid export with net metering. It offers smart load management through dual outputs for emergency and non-emergency loads, along with a customizable timer for load prioritization and battery charging.
Size: 8kVA-48V
FlinSlim MPPT Elite Solar Inverter is designed to offer more customized options to customers along with robustness. It comes with Dual Input (Grid and Generator) and Dual Output feature. It comes with wide MPPT range and in 8kW model has built-in dual MPPT controllers to offer 10kW PV capacity.Thisinverters comes with load sharing option between solar and grid and you can also use thesewithout batteries. It has kwh meter inbuilt. It offers grid export feature and also has CT coil for zero export.
- Pure Sine Wave solar inverter with up-to 93% peak efficiency
- Setting Timer available for load priority and battery charging
- Selectable maximum discharge current based on battery bank
- Built in Wi-Fi monitoring via mobile app
- Communication port for BMS – RS485
- Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
- Can be used without batteries
- Connect up-to 6 inverters in parallel in single phase & three phase
- CT coil feature
Model
| RATED POWER | 8000 VA / 8000 W |
Input
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) at 50% Load |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
Output
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Capacity | 16000 VA for 5 secs |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For UPS Mode); 20 ms (For Appliance Mode) |
| Waveform | Pure Sine Wave |
Battery
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63VDC |
| Maximum Solar Charging Current | 150A |
| Maximum AC Charging Current | 120A |
Solar Charger
| Maximum PV Array Power | 10000W (2 x 5000W) |
| Solar Charger Type | MPPT |
| MPPT Range | 90 ~ 450VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Input Charge Current | 27A*2 (Max 30A) |
Physical
| Dimension, D x W x H (mm) | 145x 438 x 553.6 mm (D x W x H) |
| Net Weight (kgs) | 18.4 |
Operating Environment
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C – 50°C |
| Storage Temperature | -15°C – 60°C |
Standards & Certifications
| Compliance | CE, BIS |
*Product specifications are subject to change without further notice.
FlinSlim MPPT Elite solar inverter comes with 2 year warranty extendable upto 5 years on add on cost and up-to 5 years of service support.
