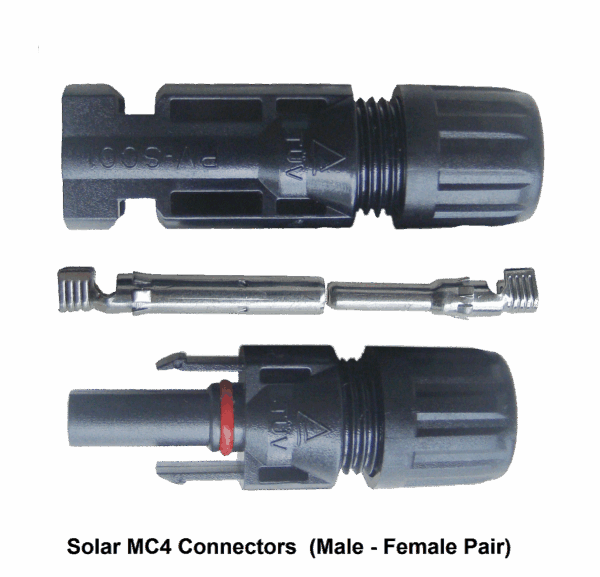

MC4 Solar Connector

MC4 connectors are used to connect multiple solar panels or groups of solar panels together in a solar field, and
typically used in parallel applications. The metal pin is made from high quality machined copper and sealed tip that can
ensure excellent electrical contact.

Technical data of MC4

Insulation material:PPO
Rated current:30A
Rated voltage:1000V
Test voltage:6KV(50Hz,1Min)
Contact material: copper, tin plated
Contact resistance:5mΩ
Degree of protection:IP67
Safety class:II
Flame calss:UL94-V0
Insertion force: ≤50N
Withdrawal force: ≥50N
Ambient temperature range:-40 C ~ +90 C
Suitable cable:2.5~6.0mm2AWG14/12/10
Pin dimensions: φ4.0mm2 &6mm2
