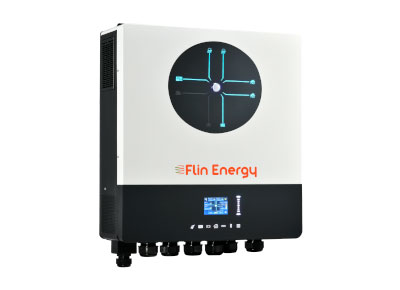

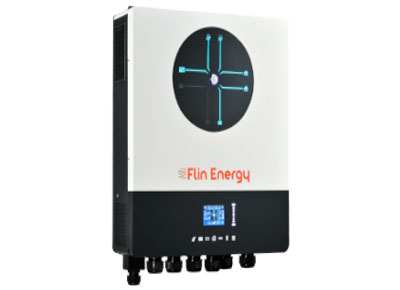

FlinSlim MPPT Elite 8kVA-48V Solar Inverter is designed to offer more customized options to customers along with robustness. It comes with Dual AC Input (Utility &Generator)and automatic switchover and comes withDual Output for SmartLoad Management.
It comes with wide MPPT range and has built-in dual MPPT controllers to offer 10kW PV capacity. This inverter comes with load sharing option between solar and grid and you can also use this without batteries. It has kwh meter inbuilt and offers grid export feature. It comes with CT coil for zero export.
It has Built-in timer which allows you to select the mode you wish to run the load and charge batteries during different times of the day. You get to select the specific hours when you wish the inverter to run in SUB and other modes to power your load or charge batteries and automatically the inverter will do that.
FlinSlim MPPT Elite also comes with built in WiFi Monitoring option and you can monitor it using the app as well
FlinSlim MPPT Elite comes with Dual Input and Dual Output Features.
Dual Input: It has two inputs available for grid input. One is regular grid input and second can be used to connect generator. In case of non-availability of grid input, it will automatically switch to generator input if required without disrupting the running loads.
Dual Output: By connecting emergency loads to one output and non-emergency loads to another, you can control the use of battery backup for non-emergency loads. For lithium batteries that allow communication with the inverter, you can set a limit based on the battery's percentage instead of voltage.
Net Metering – This model is grid export ready model. All you need to do is change one setting when you have net meter installed and you are ready to export extra solar power generated.
Feed-in to Grid + Load + Battery Charging
This inverter converts the solar power generated to power the load and charge the batteries. All excess power generated will feed-in to the Grid if net metering is enabled and you have a net meter.
Battery Backup when AC Fail
If Grid/Generator is not available, FlinSlim MPPT Elite will continue to power the load directly from the solar power and the extra solar energy generated is used to charge the batteries. During power outage it will not export power.
CT coil - This inverter comes with inbuilt CT feature which allows you to power all your loads at home without sending any power to the grid. Effectively it is like having a zero-export device in built in the inverter.
FlinSlim MPPT Elite gives you the option to select the mode you wish to run the loads and charge batteries during different times of the day. You get to select the specific hours when you wish the inverter to run in SUB and other modes to power your load or charge batteries and automatically the inverter will do that.

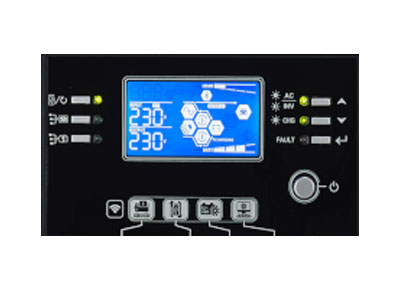

FlinSlim MPPT Elite is designed to offer great flexibility in user operation. 2.8” color touchscreen with customizable settings. All parameters can be configured through the touch screen or via using mobile app.
WiFi monitoring along with OTA firmware update
Built-in WiFi for remote monitoring and settings adjustments OTA firmware updates without needing a computer
FlinSlim MPPT Elite comes with high PV input capacity of 10KW. It comes with Dual controllers of 5kW each. Wide MPPT range (90 ~ 450 VDC) of the built-in solar charge controller offers more flexibility to the users to use any size of solar panels and helps reduce installation costs.
