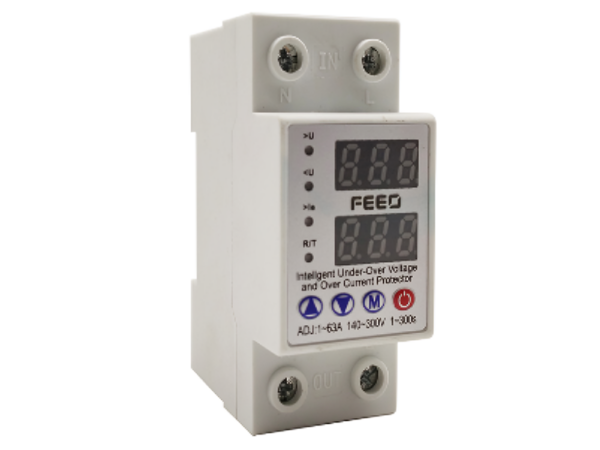

FEEO 63A Voltage Monitoring Relay with automatic under and over voltage cutoff and reconnect
₹1,105.00
FEEO Voltage monitoring relay provides and automatic over-voltage & under-voltage protection. This device will disconnect utility power if voltage goes over 270V or goes below 170V protecting your precious and expensive electronics devices connected to utility lite from low/high voltage.
Application
- 63A Adjustible Under & Over Voltage Device
- Under Voltage and Over Voltage Protection
- Automatic reconnect after 60 seconds
- DIN Rail mountible with inbuilt voltmeter
Size: Amici 63A UVOV
The device would automatically reconnect grid when voltage is between 170-270V. After disconnection, it will connect back only after 60 seconds to avoid any damage due to brownouts.
The device also has inbuilt voltmeter showing real-time voltage readings.
Specifications:
- Over Voltage Protection: 270V ± 5%
- Under Voltage Protection: 170V ± 5%
- Recovery Delay Time: ≤ 60 seconds
- Action Delay Time: ≤ 1 second
- Maximum Allowable Amperage: 63A
- DIN Rail Mountable: Yes
- LED Indication: Yes
- LCD Display Volt Meter: Yes
Common Customer Questions & Answers:
1. Will this model work with dc and can weset the value?
Answer: This product is only for single phase AC line.
2. Will it trip in ampere settings?
Answer: There is no option to set any value in this model. It will trip only when under voltage or over voltage condition happens. If you cross 63A rating, then the unit will get damaged.
3. Is this product single phase or three phase?
Answer: This product is single phase.
Warranty:
1. This product comes with 6 months warranty from the date of purchase.
2. Additional terms & conditions apply. For details please contact us
No data available.
