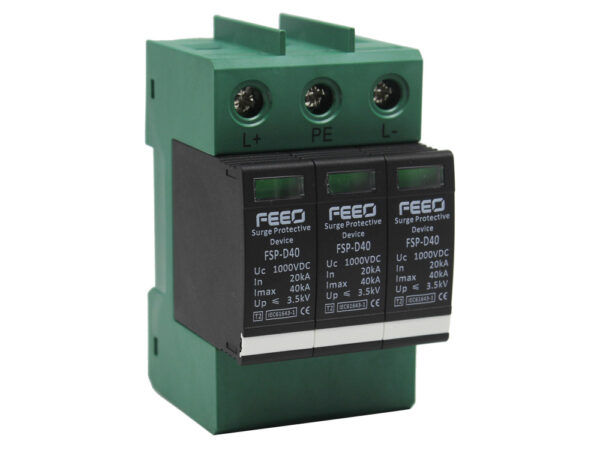

FEEO DC SPD 1000V 3 Pole 20-40kA Type 2

₹1,870.00

DIN Rail Mountable
Specially for Solar Application
The color of visible window shows operating status: Green (normal) / Red (abnormal)
Type II DC SPD 1000V, 20-40kA

5 in stock

Size: DC SPD 3P 1000V

Category: Solar Accessories Tag: solar accessories

These are high energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Pole	3P
Classified Test	II
Uoc max	1000 VDC
Maximum Continuous Operating Voltage	1000 VDC
Nominal Discharge Current In (8/20s) kA	20
Max. Discharge Current Imax (8/20s) kA	40
Voltage Protection Level Up	3.8 kV
Certification	IEC61643-1 / IEC61643-11
Wiring Capacity Hard Wire	4~25 mm²
Flexible Wire	4~16 mm²
Stripping Length	10 mm
Torque	Main Circuit 3.5 Nm
Protection Class	All Profile IP40; Connection Port IP20
Installation Environment	No obvious shock and vibration
Dimensions (Width × Height × Depth)	54 × 90 × 67.6 mm
Weight	0.36 kg

*Product specifications subjected to change in future without further notice
