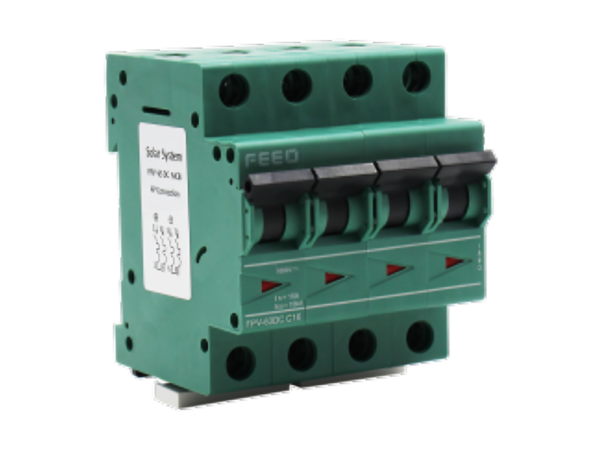

FEEO DC MCB 32A Four Pole 1000V

Name: FEEO DC MCB 32A Four Pole 1000V
SKU: 931
Availability: InStock

₹1,135.00

Use these 32A 4P DC MCB protector to provide over-current protection within appliances or electrical equipment. They are designed for direct current (DC) control circuit applications.

Application

Solar Off-grid System
Solar On-grid System
Wind & Solar Hybrid System
Any other DC System

Function

Short circuit protection
Overload protection
Control
Isolation

Size: 32A 4P 1000V DC MCB

Quantity	Discount (%)	Price
1 - 9	—	₹1,135.00
10 - 49	7.58 %	₹1,049.00
50 - 99	3.96 %	₹1,090.00
100+	8.37 %	₹1,040.00

Category: Solar Accessories Tag: Battery

Product Information Product Details Important Information Download

Specifications Of 32A 4P 1000V DC MCB

Rated Current	32A
Pole	4P
Rated Operating Voltage (VDC)	DC 1000V
Rate Current In (A)	32A
Rated Insulation Voltage	1200V
Rated Impact Voltage Uimp (kV)	4
Ultimate Breaking Capacity Icu (kA)	6
Run Breaking Capacity Ics (%Icu)	75%
Curve Type	C
Trip Type	Thermal – Magnetic

Conditions and Dimensions

Wiring Capacity	For In ≤ 32 A, 1×25 mm²
Ambient Temperature	-20°C to 70°C
Altitude	≤2000
Relative Humidity	≤9.5%
Installation Environment	No obvious shock and vibration
Installation Category	Class III
Installation	DIN Standard Rail
Dimensions (Width × Height × Depth)	72 x 80 x 71
Weight (kg)	0.48

*Product specifications subjected to change in future without further notice
