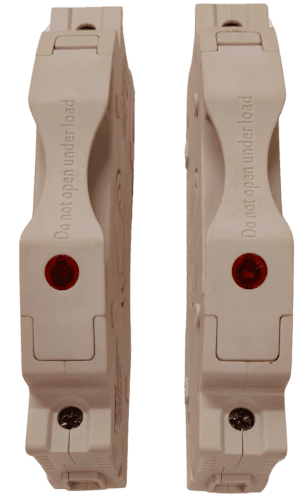

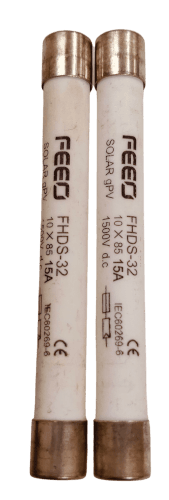

FEEO 1500V 15A Solar DC Fuse & Fuse Holder
Original price was: ₹600.00.₹480.00Current price is: ₹480.00.
Use these fuse links to protect photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovolatic string arrays (reverse, current, multi-array fault).
Application
- Solar Off-grid System
- Solar On-grid System
- Wind & Solar Hybrid System
- Any other DC System
2 in stock
Size: 125A 1P 250V DC MCB
Product Features
Designed according to IEC60269-1
Rated current: 12 A or 15A
Rated DC voltage: 1500V
Rated breaking capacity: DC 33kA
Operating class gPV for solar protection
Specifications
Max high power consumption: 3.5 W
Connection (mm²): 2.5 – 10
Working Temperature (°C): -30 to 70
Resistance and Damp Hot: Class 2
Altitude (m): ≤ 2000
Relative Humidity: ≤ 95%
Protection Class / Degree: IP20
Pollution: 3
Installation Environment: No obvious shock and vibration
Installation Class / Type: Class III / DIN rail
Dimensions in mm ( W x H x L ): 18 x 60 x 78
Fuse size: 10 x 38
Weight (kg): 0.07
Specifications
Max high power consumption: 3.5 W
Connection (mm²): 2.5 – 10
Working Temperature (°C): -30 to 70
Resistance and Damp Hot: Class 2
Altitude (m): ≤ 2000
Relative Humidity: ≤ 95%
Protection Class / Degree: IP20
Pollution: 3
Installation Environment: No obvious shock and vibration
Installation Class / Type: Class III / DIN rail
Dimensions in mm ( W x H x L ): 18 x 60 x 78
Fuse size: 10 x 38
Weight (kg): 0.07
*specifications subjected to change without further notice
Comes with 6 months warranty from the date of purchase. For more details, please contact us at contact@flinenergy.com.
