6kW 48V Solar Hybrid Inverter – IP 66, 12kW PV, Dual Output, IP66 | FlinInfini Turbo Plus
Original price was: ₹130,000.00.₹123,500.00Current price is: ₹123,500.00.
FlinInfini Turbo Plus 6kW-48V is a powerful solar hybrid inverter designed for residential and commercial solar installations. With IP66 protection, it offers complete dust and water resistance, making it suitable for outdoor and demanding environments.
It features dual MPPT controllers supporting up to 12kW PV capacity with a wide 120–450V MPPT range, enabling longer PV strings and higher system efficiency.
The inverter includes Dual Input (Grid and Generator) and Dual Output for flexible energy management. It supports load sharing between solar and grid, can operate without batteries, and provides seamless backup during grid outages.
Additional features include grid export capability, built-in WiFi monitoring, and an integrated kWh meter, making it a robust and flexible solution for modern solar power systems.
61 in stock
Size: 6kW
FlinInfini Turbo Plus 6kW-48V Solar Hybrid Inverter is designed for high-performance solar installations in demanding environments. With its IP66 protection rating, it offers complete dust and water resistance, making it suitable for outdoor and industrial applications requiring long-term reliability.
With a wide 120–450V MPPT range, the inverter works as a high-voltage MPPT solar inverter, allowing longer PV strings and improved efficiency. This solar inverter is suitable as a solar hybrid inverter for both home and commercial installations, offering flexible energy management.
- Pure Sine Wave Solar Inverter
- Dual Input and Dual Output
- 12kW PV capacity with Dual MPPT
- Compatible with Lead-Acid, Lithium-Ion, and LiFePO4 batteries (can also operate without batteries)
- Smart generator control via dry contact – generator can charge batteries and power loads
- Parallel operation up to 9 units (single-phase or three-phase)

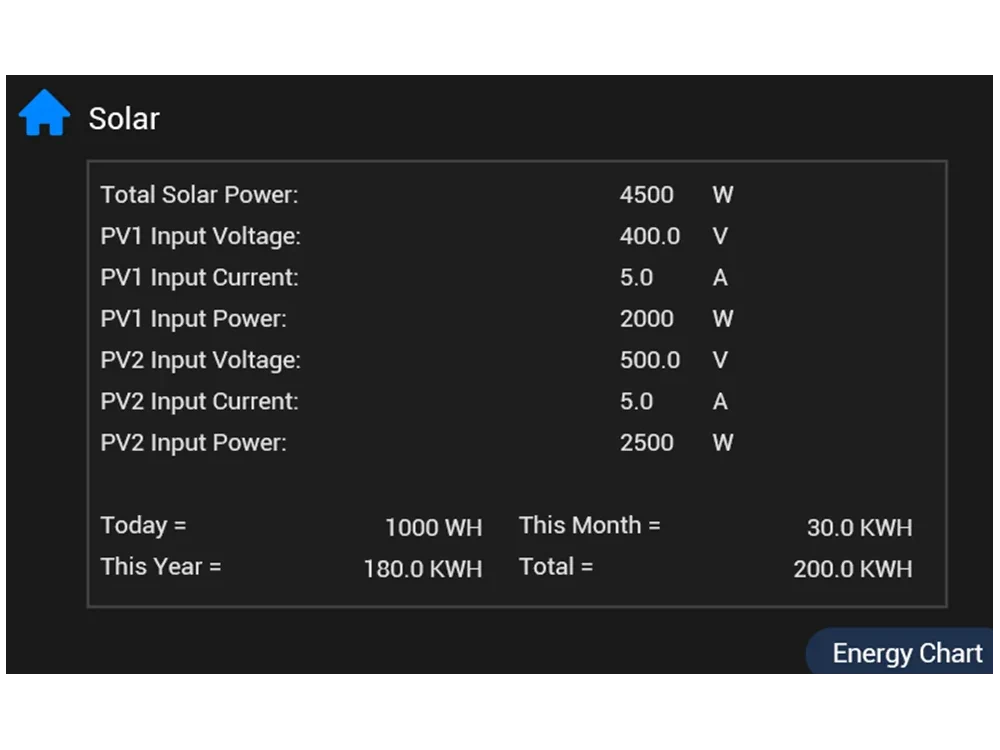

- Built-in WiFi Monitoring
- Communication ports: USB, RS232, BMS Port (CAN, RS485)
- Option to export solar and battery power

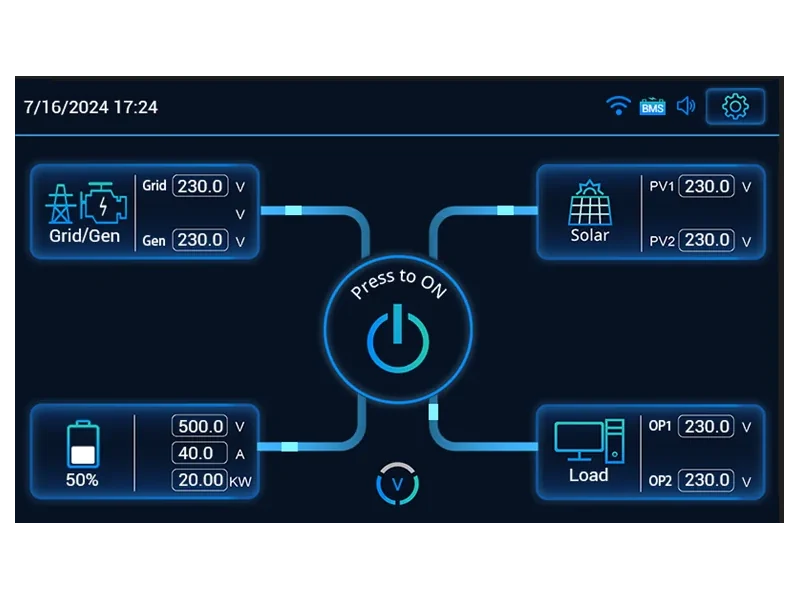

- User-friendly 4.3″ touch LCD HMI for easy configuration
FAQ
Can this inverter work without batteries?
Yes, the FlinInfini Turbo Plus 6kW inverter can operate without batteries and supply solar power directly to loads while using grid support if required.
What is the maximum solar capacity supported?
The inverter supports up to 12kW PV capacity with dual MPPT controllers.
Can generator be connected?
Yes, it supports dual input (grid + generator) with smart generator control. This solar inverter supports generator integration, allowing it to operate as a solar inverter with generator support for reliable backup power.

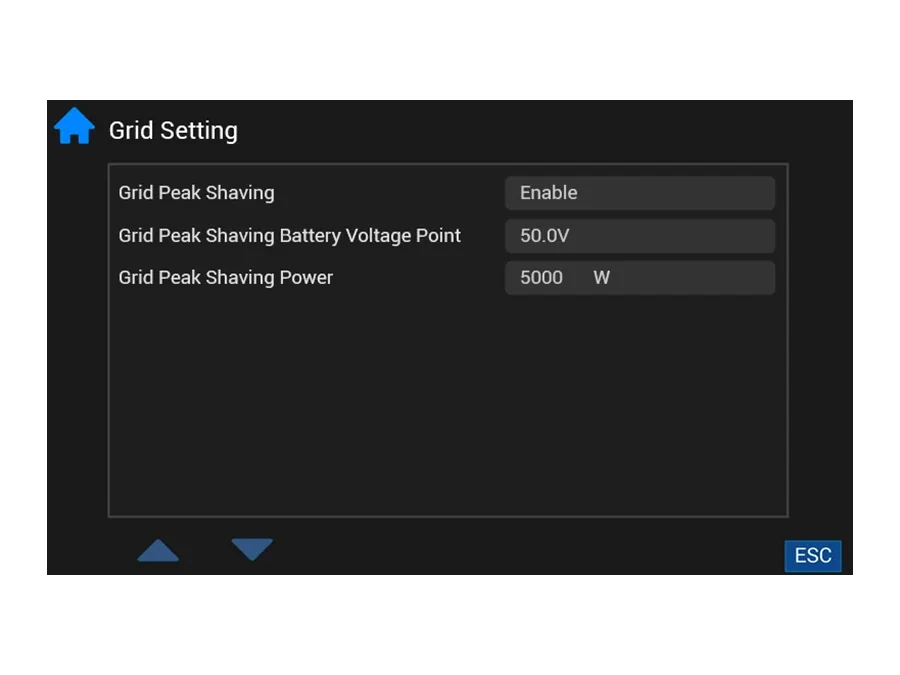

Does this inverter have peak shaving feature?
Yes, it has peak shaving feature as well as option to limit solar power export.
What is the price of a 6kW solar hybrid inverter?

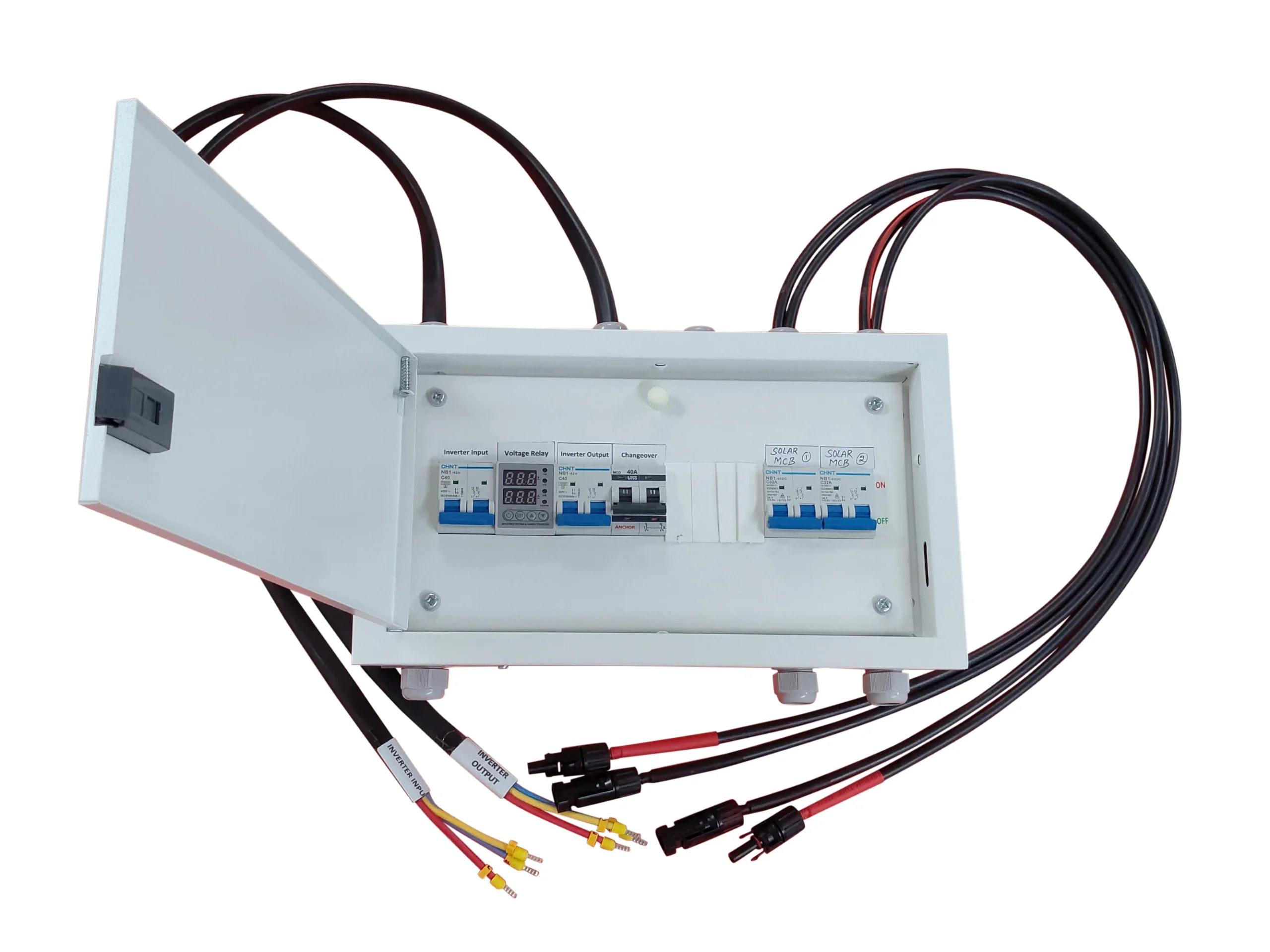

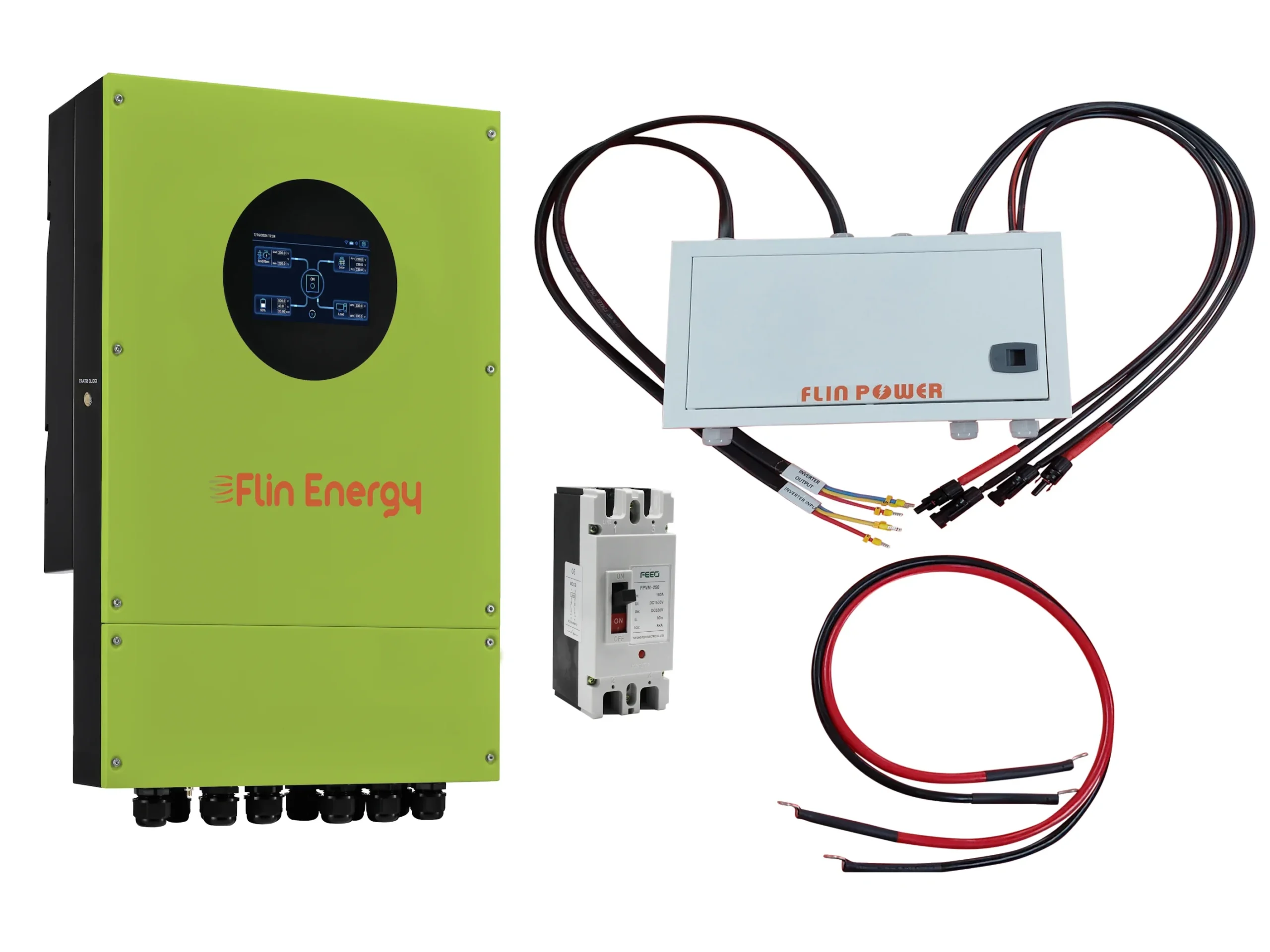

The price of a 6kW solar hybrid inverter depends on features such as MPPT capacity, grid export capability, and protection rating. The FlinInfini Turbo Plus 6kW inverter price is listed above. Do note that this price includes ACDC DB, Battery MCCB, Battery Cables as well.
I have more questions. Where do I ask?
You can always connect with us for any questions that you may have. Click here to contact us.
Designed for high-performance residential, commercial, and industrial solar systems.
IP66 Rated – Dustproof & Water Resistant. Built to perform in all conditions, the FlinInfini Turbo Plus offers complete dust and water protection, making it ideal for outdoor and industrial use with long-term reliability.

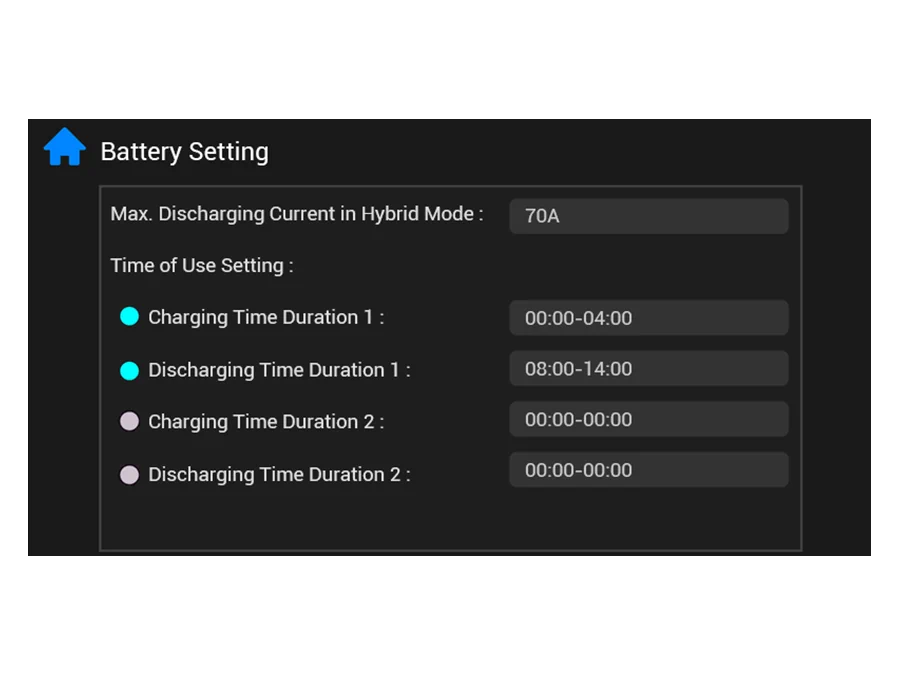

Time of Day Scheduling – Set multiple charging & discharging schedules Maximize solar usage and reduce electricity bills through optimized energy planning
Smart Power Management Features
- Dual Grid Inputs – Supports utility and generator inputs with automatic switching
- Dual Outputs – Separate outputs for essential and non-essential loads for intelligent energy prioritization.
Advanced Hybrid & Grid Export Features
- Net Metering Ready – Use solar for loads, charge batteries, and export surplus power to the grid
- Battery-to-Grid Export Option – Export stored battery energy when enabled
- Seamless Backup During Power Outages – Solar and battery continue to run loads even without grid or generator.
Specifications:
| RATED POWER | 6600 VA / 6600 W |
Input
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) at 50% Load |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
Output
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Capacity | 13200 VA for 5 secs |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For UPS Mode); 20 ms (For Appliance Mode) |
| Waveform | Pure Sine Wave |
Battery
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Maximum Solar Charging Current | 135A |
| Maximum AC Charging Current | 135A |
| Maximum Combined Charging Current | 135A |
Solar Charger
| Maximum PV Array Power | 12000W (2 x 6000W) |
| Solar Charger Type | MPPT |
| MPPT Range | 120 ~ 450VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Input Charge Current | 2 x 21A |
Physical
| Dimension (D x W x H) | 192 x 418 x 633 mm ( |
| Net Weight (kgs) | 23.5 |
Operating Environment & Communication
| Humidity | 0% to 100% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C – 50°C |
| Communication | RS-232, USB, RS485 (For BMS), WiFi, Dry Contact |
Standards & Certifications
| Compliance | CE, BIS |
*Product specifications are subject to change without further notice.
FlinInfini Turbo Plus 6kW solar inverter comes with 5 year warranty and 5 years of service support.
