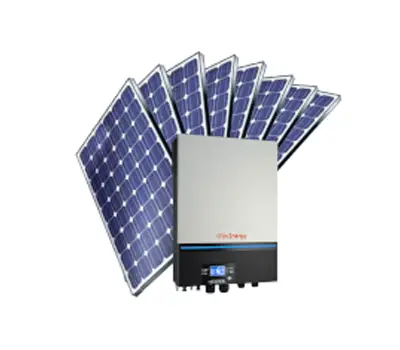

FlinSlim MPPT Elite 5kW-48V Solar Inverter

Original price was: ₹105,000.00.Current price is: ₹98,400.00.

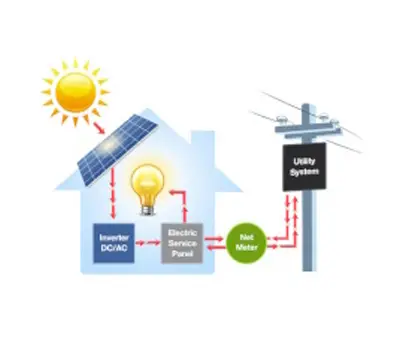

FlinSlim MPPT Elite 5kVA-48V Solar Inverter is a cutting-edge solution designed to optimize your solar energy system. With an impressive 6kW PV input capacity, this inverter seamlessly integrates solar, battery, and grid power to meet your energy needs efficiently. It features built-in Wi-Fi monitoring, customizable settings, and a removable LCD screen for unparalleled control and convenience.Designed to offer more customized options like grid export feature, inbuilt WiFi monitoring to customers along with robustness.Moreover, it supports grid export for net metering, allowing you to feed excess power back to the grid.

10 in stock

Size: 5kW-48V

Log in to add to wishlist

SKU: FT-5kW Category: Solar Inverters Tags: , , Brand:

FlinSlim MPPT Elite 5kVA-48V Solar Inverter is designed to offer more customized options to customers along with robustness. It comes with wide MPPT range to offer 6kW PV capacity. This inverter comes with load sharing option between solar and grid and you can also use this without batteries. It has kwh meter inbuilt. It is compatible with Lithium Ion, LiFePO4 and Lead Acid Batteries.

Features

  • Pure Sine Wave solar inverter with up-to 93% peak efficiency
  • Setting Timer available for load priority and battery charging
  • Built in Wi-Fi monitoring via mobile app
  • Communication port for BMS – RS485
  • Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
  • Can be used without batteries
  • Grid Export Option Available

Model

RATED POWER 5000 VA / 5000 W
GRID EXPORT Yes, Available

Input

Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) at 50% Load
Frequency Range 50 Hz/60 Hz (Auto sensing)

Output

AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Surge Capacity 10000 VA for 5 secs
Efficiency (Peak) 93%
Transfer Time 15 ms (For UPS Mode); 20 ms (For Appliance Mode)
Waveform Pure Sine Wave

Battery

Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 100A

Solar Charger

Maximum PV Array Power 6000W
Solar Charger Type MPPT
MPPT Range 120 ~ 450VDC
Maximum PV Array Open Circuit Voltage 500 VDC

Physical & Communication

Dimension, D x W x H (mm) 115x 300 x 400mm (D x W x H)
Net Weight (kgs) 10
Communication USB/RS485/RS232/Dry-Contact/WiFi

Operating Environment

Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C – 50°C
Storage Temperature -15°C – 60°C

Standards & Certifications

Compliance CE, BIS

*Product specifications are subject to change without further notice.

FlinSlim MPPT Elite solar inverter comes with 5 year warranty and up-to 5 years of service support.
