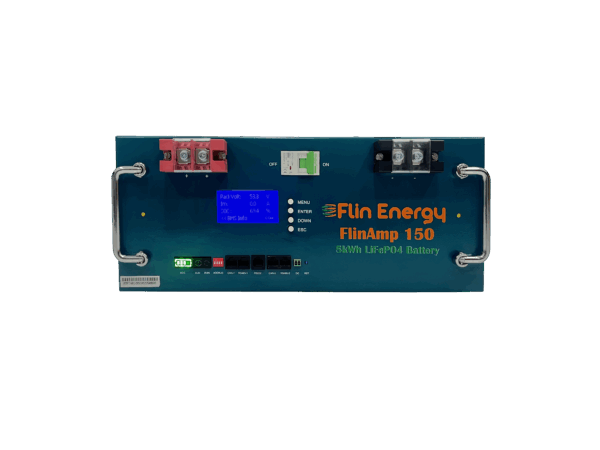

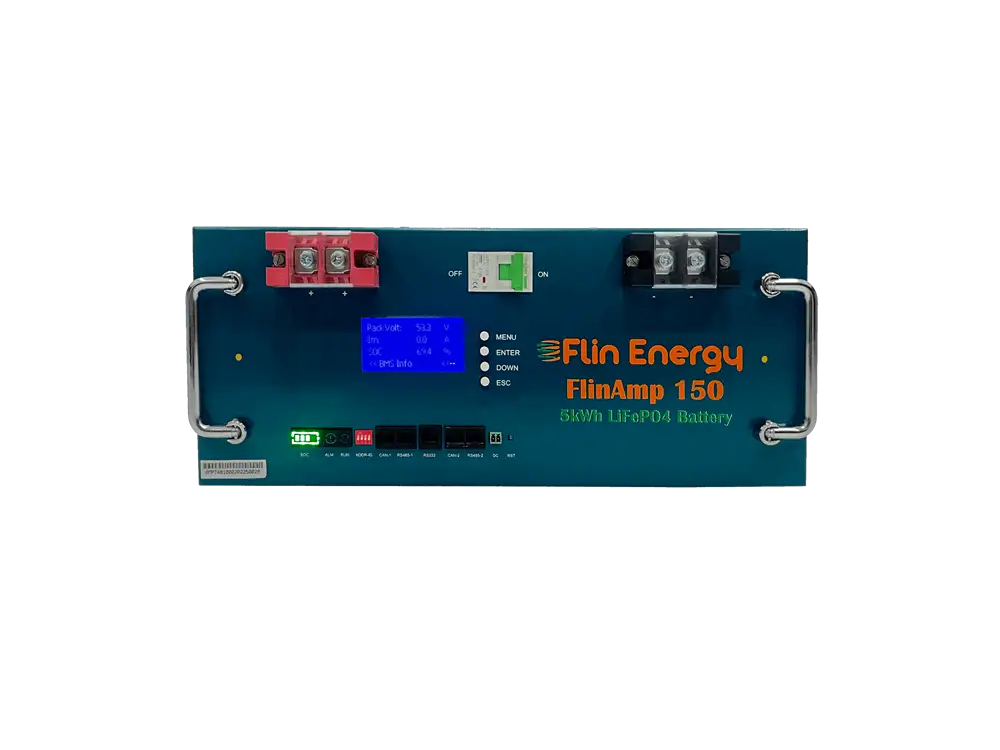

FlinAmp 150 – 48V 100Ah LiFePO4 Lithium Battery (5kWh)

FlinAmp 150 – 48V 100Ah LiFePO4 Battery (5kWh)

FlinAmp 150 is a high-performance LiFePO4 lithium battery designed for solar energy storage and backup power systems. With a capacity of 48V 100Ah (5kWh), it delivers reliable power for residential, commercial, and industrial applications.

The battery uses advanced lithium iron phosphate (LiFePO4) chemistry, known for its safety, long cycle life, and stable performance. An intelligent Battery Management System (BMS) protects the battery from over-charge, over-discharge, short circuit, and temperature variations.

FlinAmp 150 supports high discharge currents up to 150A, enabling loads up to 7.2kW. It also supports parallel connection of up to 16 battery modules, allowing flexible expansion of energy storage capacity.

With WiFi/Bluetooth monitoring, inverter communication, and maintenance-free operation, FlinAmp 150 offers a reliable and scalable energy storage solution for modern solar power systems.

FlinAmp 150 works seamlessly with solar hybrid inverters such as the FlinInfini Turbo Plus series.

Features

• Peak discharge current up to 150A
• Continuous load support up to 7.2kW
• Built-in intelligent Battery Management System (BMS)
• 6000 Cycle life for long-term reliability
• Up to 10 Year warranty
• Stackable with the capability to parallel up to 16 modules
• Compatible with inverters-chargers and solar inverters

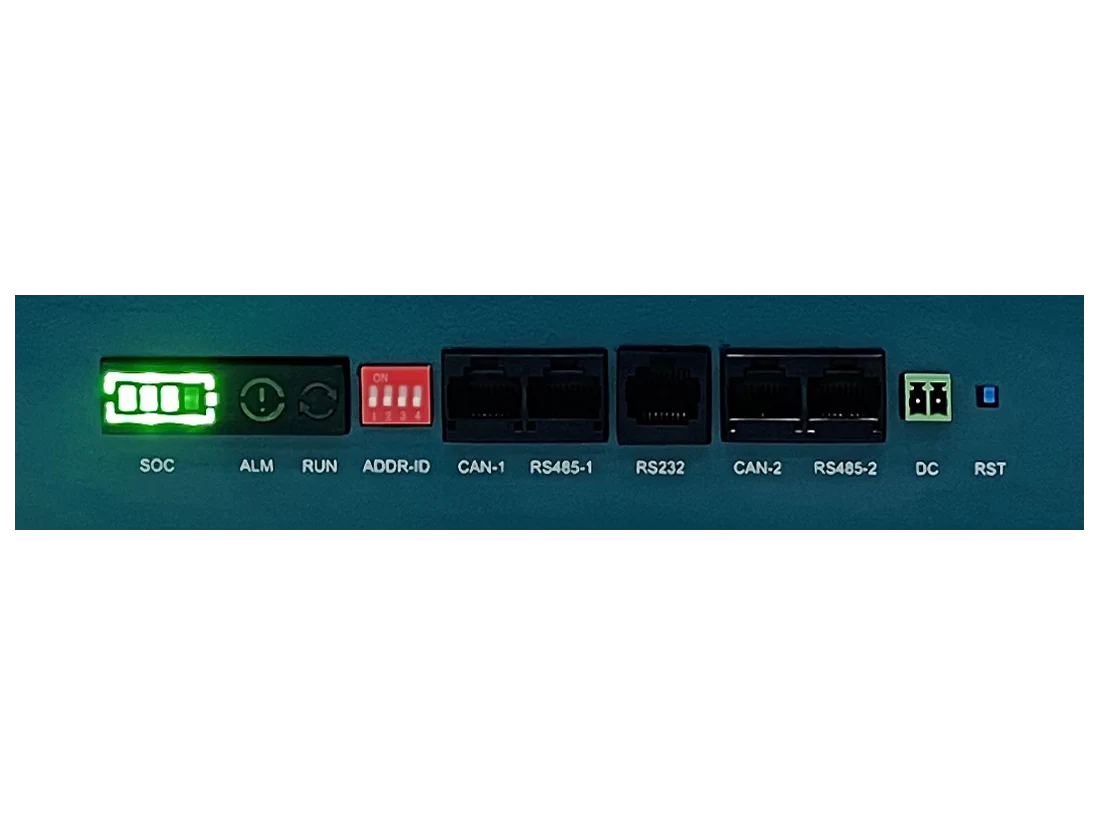

• RS485 communication with Flin, Deye, Victron and many other brand of inverters
• Built-In WiFi/Bluetooth Monitoring
• Maintenance free lithium battery solution

FAQ

What is the capacity of the FlinAmp 150 battery?

FlinAmp 150 offers 5kWh energy storage with 48V 100Ah capacity, suitable for solar backup and energy storage systems.

Can multiple FlinAmp batteries be connected together?

Yes. Up to 16 battery modules can be connected in parallel to increase storage capacity.

What is the cycle life of the battery?

The battery supports up to 6000 charge-discharge cycles, providing long service life.

How long will a 5kWh battery run home appliances?

A 5kWh battery like the FlinAmp 150 (48V 100Ah LiFePO4) can run household loads depending on the total power consumption.

Typical examples:

Actual backup time depends on factors such as battery charge level, inverter efficiency, and load variations.

FlinAmp 150 supports high discharge loads up to 7.2kW, making it suitable for both residential and commercial solar backup systems.

Why is the battery called 48V if the nominal voltage is 51.2V?

Lithium LiFePO4 batteries used in 48V systems typically consist of 16 cells connected in series (16S). Each cell has a nominal voltage of about 3.2V, resulting in a total nominal voltage of 51.2V.

These batteries are commonly referred to as 48V batteries because they are designed to work with standard 48V inverter and solar power systems.
